Classifying images of dogs and cats is a classic deep learning problem that helps demonstrate the power of Convolutional Neural Networks (CNNs).

In this tutorial, we’ll build a CNN-based classifier using TensorFlow and Keras on an Ubuntu 24.04 server with GPU acceleration. We’ll also create a simple Flask-based web interface to upload images and get predictions.

Prerequisites

Before starting, ensure you have:

  • An Ubuntu 24.04 server with an NVIDIA GPU.
  • A root user or a user with sudo privileges.
  • NVIDIA drivers are installed for GPU acceleration.

Step 1: Install Required Packages

First, update your system and install the necessary Python packages:

apt update -y
apt install python3 python3-pip python3-venv

Step 2: Set Up Python Environment

Now, you will create a Python environment for your project.

1. Create a virtual environment.

python3 -m venv ~/dogcat-cnn

2. Activate the virtual environment.

source ~/dogcat-cnn/bin/activate

3. Install the required Python packages.

pip install tensorflow keras flask pillow scipy kaggle

These packages include:

  • tensorflow for machine learning with GPU support
  • pillow for image processing
  • flask for the web interface
  • kaggle to download datasets

Step 3: Set Up Kaggle API

We’ll use the Kaggle API to download the dataset.

1. Go to Kaggle and log in.

2. Click your profile picture  => Account

3. Scroll down to the API section

4. Click “Create New API Token”

5. This will download kaggle.json to your computer

6. Create a Kaggle configuration directory on your server.

mkdir -p ~/.kaggle

7. Copy your downloaded kaggle.json file into the ~/.kaggle folder.

8. Set appropriate permissions.

chmod 600 ~/.kaggle/kaggle.json

This step allows us to download the dataset directly from Kaggle without manual uploads programmatically.

Step 4: Download and Prepare the Dataset

Now, we will use Kaggle to download the Dogs vs Cats dataset from Kaggle and extract it.

1. Download the dataset.

kaggle datasets download -d salader/dogs-vs-cats

2. Unzip the dataset.

unzip dogs-vs-cats.zip

3. Verify the extracted directory.

ls dogs_vs_cats/train/

Output.

cats  dogs

4. Create the required directories for your project.

mkdir templates
mkdir -p static/uploads

The dataset contains labeled images of dogs and cats, which we’ll use to train our CNN model.

Step 5: Build and Train the CNN Model

We’ll define a CNN using TensorFlow/Keras and train it on the dataset.

nano dog_cat_classifier.py

Add the below code:

import os
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Flatten, Dense, Dropout
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.models import load_model

# Define paths
base_dir = 'dogs_vs_cats'
train_dir = os.path.join(base_dir, 'train')
test_dir = os.path.join(base_dir, 'test')

# Image parameters
img_width, img_height = 150, 150
batch_size = 32

# Data augmentation for training
train_datagen = ImageDataGenerator(
    rescale=1./255,
    rotation_range=40,
    width_shift_range=0.2,
    height_shift_range=0.2,
    shear_range=0.2,
    zoom_range=0.2,
    horizontal_flip=True,
    fill_mode='nearest')

# Only rescaling for testing
test_datagen = ImageDataGenerator(rescale=1./255)

# Generators
train_generator = train_datagen.flow_from_directory(
    train_dir,
    target_size=(img_width, img_height),
    batch_size=batch_size,
    class_mode='binary')

test_generator = test_datagen.flow_from_directory(
    test_dir,
    target_size=(img_width, img_height),
    batch_size=batch_size,
    class_mode='binary')

# Build the model
model = Sequential([
    Conv2D(32, (3,3), activation='relu', input_shape=(img_width, img_height, 3)),
    MaxPooling2D(2,2),
    Conv2D(64, (3,3), activation='relu'),
    MaxPooling2D(2,2),
    Conv2D(128, (3,3), activation='relu'),
    MaxPooling2D(2,2),
    Flatten(),
    Dropout(0.5),
    Dense(512, activation='relu'),
    Dense(1, activation='sigmoid')
])

# Compile the model
model.compile(loss='binary_crossentropy',
              optimizer='adam',
              metrics=['accuracy'])

# Train the model
epochs = 10
model.fit(
    train_generator,
    steps_per_epoch=train_generator.samples // batch_size,
    epochs=epochs,
    validation_data=test_generator,
    validation_steps=test_generator.samples // batch_size)

# Evaluate the model
loss, accuracy = model.evaluate(test_generator)
print(f'Test Accuracy: {accuracy * 100:.2f}%')

# Save the model
model.save('dog_cat_classifier_model.h5')

This CNN model uses convolutional layers to extract features and dense layers for classification. Data augmentation helps improve generalization.

Step 6: Create a Flask Web App for Predictions

We’ll build a simple web interface to upload images and get predictions.

Create a web application file.

nano web_app.py

Add the below code.

from flask import Flask, request, render_template, redirect, url_for
from tensorflow.keras.models import load_model
from tensorflow.keras.preprocessing.image import load_img, img_to_array
import numpy as np
import os
from PIL import Image

app = Flask(__name__)
model = load_model('dog_cat_classifier_model.h5')

UPLOAD_FOLDER = 'static/uploads'
app.config['UPLOAD_FOLDER'] = UPLOAD_FOLDER

def model_predict(img_path):
    img = load_img(img_path, target_size=(150, 150))
    img_array = img_to_array(img) / 255.0
    img_array = np.expand_dims(img_array, axis=0)
    prediction = model.predict(img_array)[0][0]
    return 'Dog' if prediction > 0.5 else 'Cat'

@app.route('/', methods=['GET', 'POST'])
def index():
    if request.method == 'POST':
        file = request.files['file']
        if file:
            filepath = os.path.join(app.config['UPLOAD_FOLDER'], file.filename)
            file.save(filepath)
            prediction = model_predict(filepath)
            return render_template('index.html', prediction=prediction, image_url=filepath)
    return render_template('index.html')


if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

Create an index.html file.

nano templates/index.html

Add the following code.

<!DOCTYPE html>
<html>
<head>
    <title>Dog vs Cat Classifier</title>
</head>
<body>
    <h2>Upload an image of a Dog or Cat</h2>
    <form method="post" enctype="multipart/form-data">
        <input type="file" name="file" accept="image/*" required>
        <button type="submit">Predict</button>
    </form>

    {% if prediction %}
        <h3>Prediction: {{ prediction }}</h3>
        <img src="{{ image_url }}" alt="Uploaded Image" width="300px">
    {% endif %}
</body>
</html>

The Flask app loads the trained model and provides an interface for uploading images and receiving real-time predictions.

Step 7: Run the Web App

1. You can now start the Flask Web Application using the following command:

python3 web_app.py

2. Visit http://your-server-ip:5000 in your browser to access the interface.

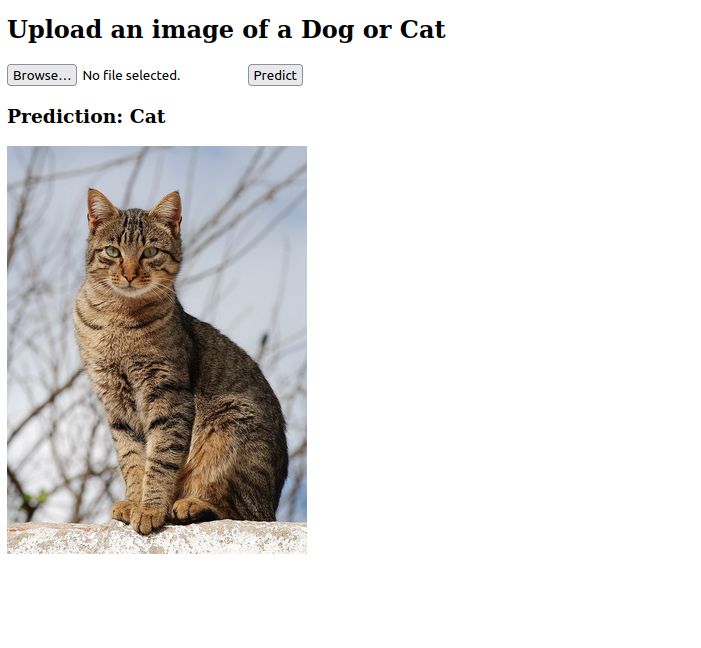

3. Click Browse and upload a cat image, then click on the Predict button. The web interface classifies the uploaded image with a pre-trained model and displays the result.

Conclusion

We successfully built a Dog vs Cat CNN classifier on Ubuntu 24.04 with GPU support, trained it on a Kaggle dataset, and deployed it using Flask. This project demonstrates:

  • CNN architecture for image classification.
  • Data augmentation to improve model robustness.
  • Flask integration for real-time predictions.
