Lane detection is a key element in autonomous driving systems and driver-assistance technologies. In this article, we’ll walk through implementing lane line detection using OpenCV and Python on an Ubuntu 24.04 GPU server. This real-time solution processes a video stream to identify lane lines using computer vision techniques like edge detection, region masking, and Hough transforms. We’ll also create a web interface to display both original and processed videos side-by-side.

What You’ll Build

We’ll use a video of a car driving on a highway, apply computer vision techniques to detect lane lines, and visualize both the original and processed outputs in a web app. The lane detection is powered by OpenCV, and Flask delivers the interface.

Prerequisites

  • An Ubuntu 24.04 server with an NVIDIA GPU.
  • A root user or a user with sudo privileges.
  • NVIDIA drivers installed.

Step 1: Set Up the Python Environment

To ensure a clean setup with all necessary packages, we’ll create a virtual environment and install dependencies.

First, install all necessary dependencies:

apt install python3 python3-dev python3-venv -y

Next, create and activate a virtual environment.

python3 -m venv venv
source venv/bin/activate

Next, update pip to the latest version.

pip install --upgrade pip

Next, install all required packages for this project.

python3 -m pip install opencv-python numpy matplotlib pillow flask kaggle

Step 2: Download the Video Dataset

We’ll use the Kaggle lane detection dataset for this project. Follow the below steps to download the Kaggle dataset.

1. Go to Kaggle and log in.

2. Click your profile picture => Account

3. Scroll down to the API section

4. Click “Create New API Token”

5. This will download kaggle.json to your computer

6. Create a Kaggle configuration directory on your server.

mkdir -p ~/.kaggle

7. Copy your downloaded kaggle.json file into the ~/.kaggle folder.

8. Set appropriate permissions.

chmod 600 ~/.kaggle/kaggle.json

9. Download the dataset using the command below.

kaggle datasets download -d dpamgautam/video-file-for-lane-detection-project

10. Unzip the downloaded file.

unzip video-file-for-lane-detection-project.zip

11. This command will extract the test_video.mp4 file from the downloaded zip file.

Step 3: Process the Video with OpenCV

We’ll write a Python script that reads each frame, detects edges, isolates the region of interest, and applies the Hough Line Transform to detect lanes on test_video.mp4.

1. Create a file.

nano main.py

Add the below code.

import cv2
import numpy as np
import os

# Global variables
first_frame = True
cache = np.zeros(8)
frame_counter = 0

def interested_region(img, vertices):
    mask = np.zeros_like(img)
    mask_color = (255,) * img.shape[2] if len(img.shape) > 2 else 255
    cv2.fillPoly(mask, vertices, mask_color)
    return cv2.bitwise_and(img, mask)

def hough_lines(img, rho, theta, threshold, min_line_len, max_line_gap):
    lines = cv2.HoughLinesP(img, rho, theta, threshold, np.array([]),
                            minLineLength=min_line_len, maxLineGap=max_line_gap)
    if lines is None:
        print("⚠️ No Hough lines found.")
    else:
        print(f"✅ Detected {len(lines)} line(s).")
    line_img = np.zeros((img.shape[0], img.shape[1], 3), dtype=np.uint8)
    lines_drawn(line_img, lines)
    return line_img

def lines_drawn(img, lines, color=[0, 255, 0], thickness=3):
    if lines is None:
        return
    for line in lines:
        for x1, y1, x2, y2 in line:
            cv2.line(img, (x1, y1), (x2, y2), color, thickness)

def weighted_img(img, initial_img, α=0.8, β=1., λ=0.):
    return cv2.addWeighted(initial_img, α, img, β, λ)

def process_frame(image):
    global frame_counter

    # Use full grayscale image (no masking)
    gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

    # Gaussian blur
    blurred = cv2.GaussianBlur(gray, (5, 5), 0)

    # Canny edge detection - more sensitive
    edges = cv2.Canny(blurred, 5, 50)

    # Region of interest
    height, width = image.shape[:2]
    roi_vertices = np.array([[
        (width * 0.1, height),
        (width * 0.45, height * 0.6),
        (width * 0.55, height * 0.6),
        (width * 0.9, height)
    ]], dtype=np.int32)

    roi = interested_region(edges, roi_vertices)

    # Save debug images for the first few frames
    if frame_counter < 3:
        os.makedirs("debug", exist_ok=True)
        cv2.imwrite(f"debug/edges_{frame_counter}.jpg", edges)
        cv2.imwrite(f"debug/roi_{frame_counter}.jpg", roi)

    # Run relaxed Hough Transform
    line_img = hough_lines(roi, 2, np.pi / 180, 10, 20, 50)
    result = weighted_img(line_img, image)

    frame_counter += 1
    return result

if __name__ == "__main__":
    cap = cv2.VideoCapture("test_video.mp4")
    if not cap.isOpened():
        print("❌ Error: Cannot open input video.")
        exit(1)

    width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
    height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
    fps = cap.get(cv2.CAP_PROP_FPS)
    fourcc = cv2.VideoWriter_fourcc(*'mp4v')
    out = cv2.VideoWriter("output.mp4", fourcc, fps, (width, height))

    print("🚀 Processing video...")

    while cap.isOpened():
        ret, frame = cap.read()
        if not ret:
            break
        processed = process_frame(frame)
        out.write(processed)

        if frame_counter % 10 == 0:
            print(f"📦 Processed {frame_counter} frames...")

    cap.release()
    out.release()

    print("✅ Done. Output saved as output.mp4.")
    print("🛠️ Debug edge/ROI images saved to ./debug/")

This code reads each frame, applies edge detection and region masking, then uses HoughLinesP to detect line segments. It overlays the detected lines on the original video and writes the output.

Now, run the above code.

python3 main.py

Step 4: Create the Flask Web App

Now we’ll set up a web server that streams both the original and processed videos.

Create a Flask application file.

nano app.py

Add the following code.

from flask import Flask, render_template, Response
import cv2

app = Flask(__name__)

# Video file paths
video_original = cv2.VideoCapture("test_video.mp4")
video_processed = cv2.VideoCapture("output.mp4")

def generate_frames(video):
    while True:
        success, frame = video.read()
        if not success:
            video.set(cv2.CAP_PROP_POS_FRAMES, 0)
            continue
        _, buffer = cv2.imencode('.jpg', frame)
        frame_bytes = buffer.tobytes()
        yield (b'--frame\r\n'
               b'Content-Type: image/jpeg\r\n\r\n' + frame_bytes + b'\r\n')

@app.route('/')
def index():
    return render_template('index.html')

@app.route('/video_original')
def stream_original():
    return Response(generate_frames(video_original),
                    mimetype='multipart/x-mixed-replace; boundary=frame')

@app.route('/video_processed')
def stream_processed():
    return Response(generate_frames(video_processed),
                    mimetype='multipart/x-mixed-replace; boundary=frame')

if __name__ == "__main__":
    app.run(host='0.0.0.0', port=5000, debug=False)

This Flask app defines routes to stream both video files as MJPEG streams. The generate_frames() function encodes each video frame into JPEG and streams it continuously.

Step 5: Build the Web Interface

We’ll now create an HTML page to display the input and output video feeds side-by-side.

First, create a templates directory and create an HTML page.

mkdir templates
nano templates/index.html

Add the below code.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Lane Line Detection – Viewer</title>
    <style>
        body {
            font-family: Arial, sans-serif;
            background-color: #f5f5f5;
            text-align: center;
            padding: 20px;
        }

        h1 {
            color: #333;
            margin-bottom: 30px;
        }

        .video-container {
            display: flex;
            justify-content: center;
            gap: 40px;
            flex-wrap: wrap;
        }

        .video-panel {
            display: flex;
            flex-direction: column;
            align-items: center;
        }

        .video-panel img {
            border: 4px solid #444;
            max-width: 600px;
            height: auto;
            border-radius: 8px;
        }

        .label {
            font-size: 18px;
            font-weight: bold;
            color: #444;
            margin-top: 10px;
        }

        footer {
            margin-top: 40px;
            font-size: 14px;
            color: #777;
        }
    </style>
</head>
<body>
    <h1>Lane Line Detection – Input vs Output</h1>

    <div class="video-container">
        <div class="video-panel">
            <div class="label">Original Video</div>
            <img src="{{ url_for('stream_original') }}" alt="Original Video Stream">
        </div>

        <div class="video-panel">
            <div class="label">Processed Video</div>
            <img src="{{ url_for('stream_processed') }}" alt="Processed Video Stream">
        </div>
    </div>

    <footer>
        © 2025 Lane Detection Demo – Powered by OpenCV + Flask
    </footer>
</body>
</html>

The HTML page renders both video streams with labels using the routes defined in the Flask app.

Step 6: Run the Flask App

Now, start the Flask server using the command below.

python3 app.py

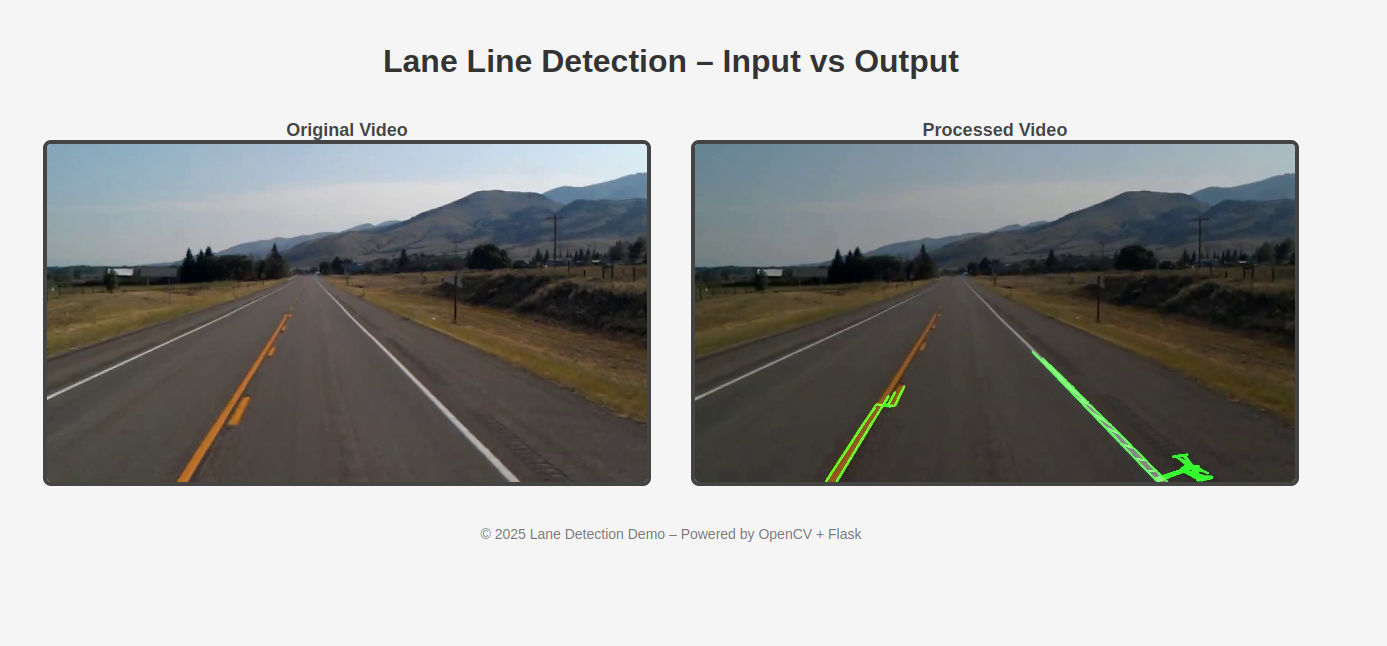

Open your web browser and access the Flask web interface using the URL http://your-server-ip:5000. You should see both the original and processed videos playing side by side.

Conclusion

You have successfully implemented a full lane detection system using OpenCV and served it with Flask. By leveraging the parallel processing capabilities of GPUs, you can achieve real-time performance essential for critical applications like autonomous navigation. This solution can be extended to use live camera input, real-time overlays, or integration with machine learning models.
