How to Check Linux CPU Usage or Utilization

Hitesh Jethva
by Atlantic.Net (299 posts) under Tutorials, VPS Hosting
0 Comments

Monitoring the performance of the CPU is an essential task of any system administrator who needs to measure the performance of a system. This will help you to debug system processes, manage system resources, and make system decisions. There are several tools available for checking CPU usage in Linux.

In this post, we will demonstrate a few methods to check and monitor CPU usage in Linux.

Prerequisites

  • A Linux server on the Atlantic.Net Cloud Platform
  • A root password configured on your server

Create Atlantic.Net Cloud Server

First, log in to your Atlantic.Net Cloud Server. Create a new server, choosing Ubuntu, CentOS, or Rocky Linux as the operating system with at least 2GB RAM. Connect to your Cloud Server via SSH and log in using the credentials highlighted at the top of the page.

Once you are logged in to your server, run the following command to update your base system with the latest available packages.

apt-get update -y

Or

dnf update -y

1. Check CPU Usage with Top Command

Top is a very useful command-line tool that helps you to monitor all running processes in real-time. It will display the information about the readout of users, tasks, CPU load, and memory usage in real-time. By default, the top command updates the data every 5 seconds.

Now, let’s start using the top command to monitor the CPU usage:

top

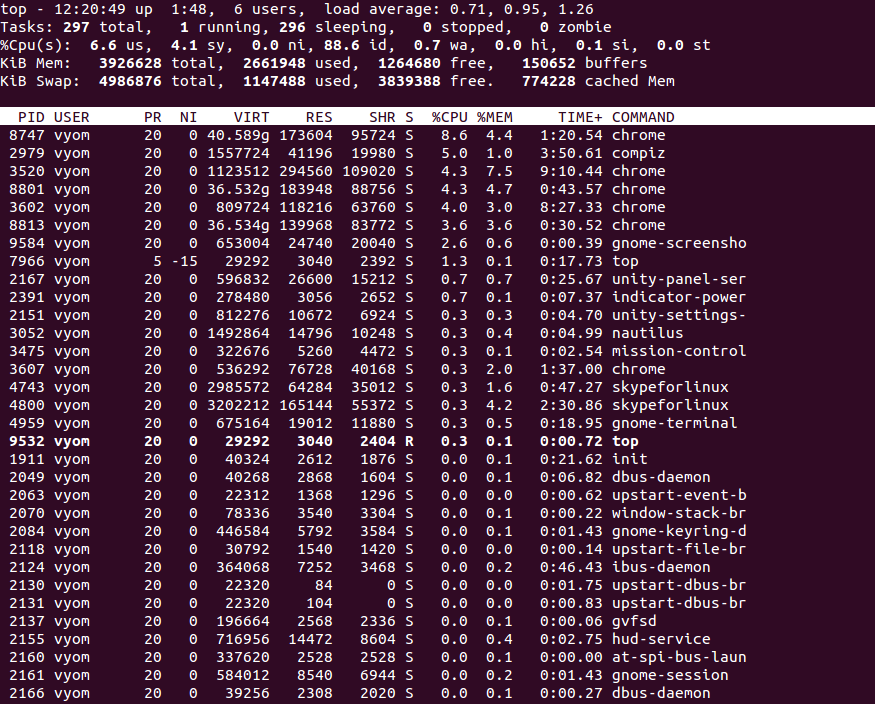

You should see the all running processes on the following screen:
Top command

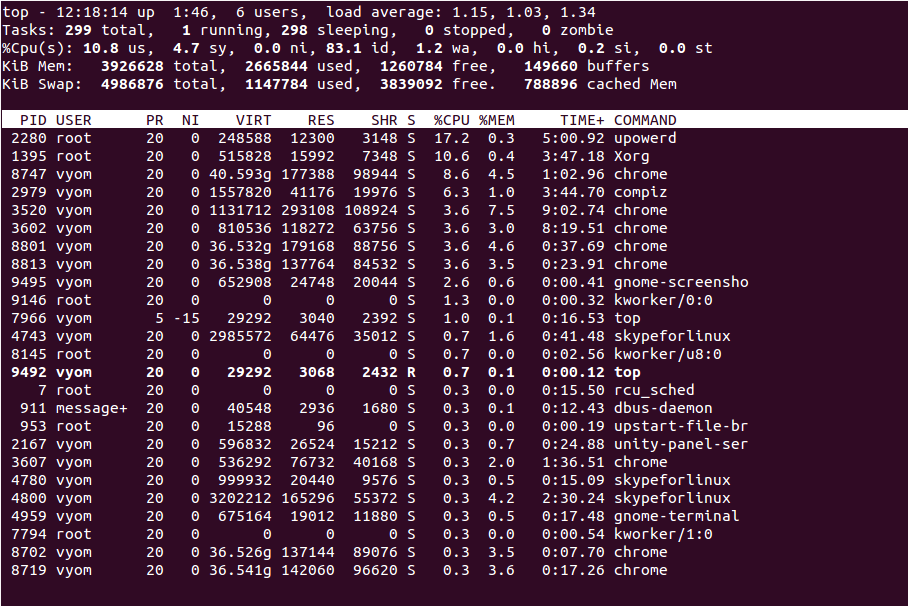

Type P to sort all running processes by CPU usage. You should see the following screen:
Sort process by CPU usage

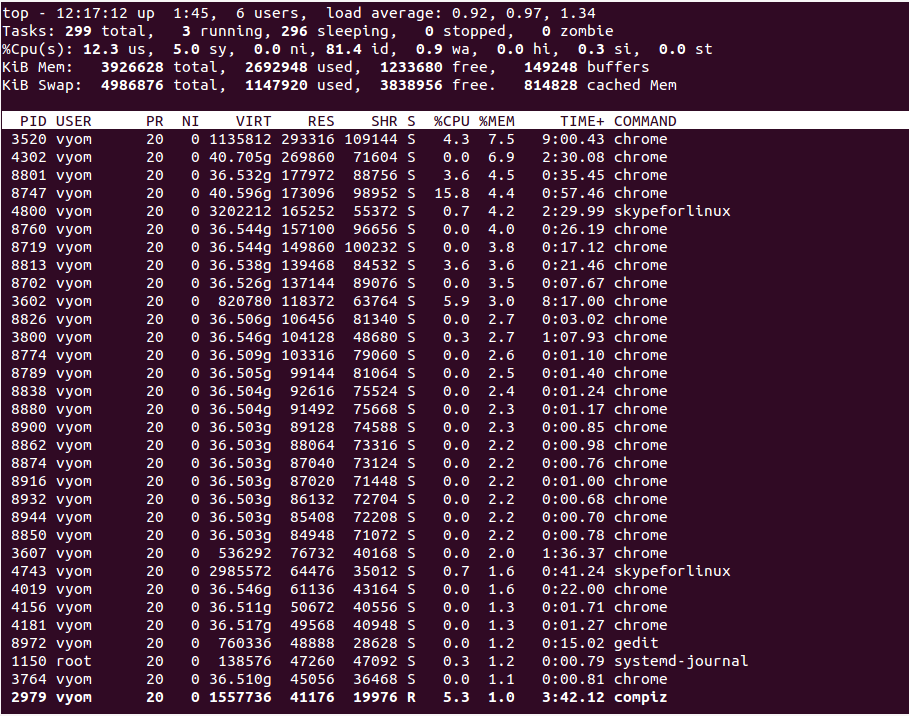

Type M to sort all running processes by Memory usage. You should see the following screen:
Sort process by Memory usage

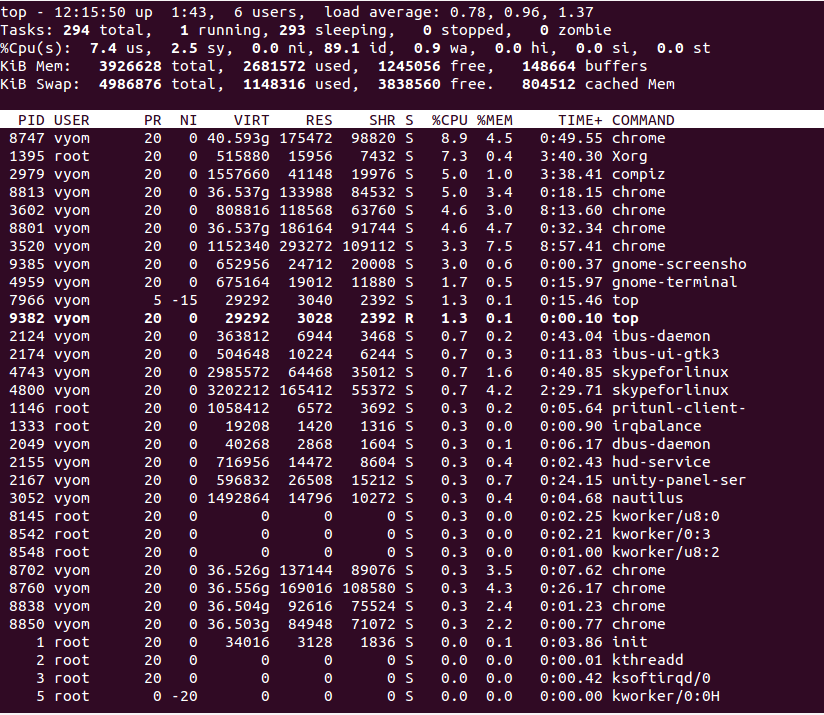

Type I to hide all idle processes. You should see the following screen:
Hide process
Type S to sort all processes by how long the processes have been running:
Sort process by running time
Type U to view all processes owned by a specific user. You should see the following screen:
Sort process by owned user

2. Check CPU Usage with Mpstat Command

Mpstat is a part of the sysstat package.

For Debian or Ubuntu operating systems, you can install it using the following command:

apt-get install sysstat -y

For CentOS or RHEL operating systems, you can install it using the following command:

yum install sysstat -y

Now, run the mpstat command without any options. This will display usage for each processor:

mpstat

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

12:28:46  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:28:46  IST  all   18.30    0.01    3.44    8.26    0.00    0.16    0.00    0.00    0.00   69.82

To display a report for the first processor, run:

mpstat -P 0

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

12:29:35  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:29:35  IST    0   18.16    0.01    3.94    8.68    0.00    0.27    0.00    0.00    0.00   68.93

To display the report of all processors, run:

mpstat -P ALL

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

12:45:50  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:45:50  IST  all   16.38    0.01    3.11    7.33    0.00    0.15    0.00    0.00    0.00   73.02
12:45:50  IST    0   16.28    0.01    3.58    7.76    0.00    0.25    0.00    0.00    0.00   72.12
12:45:50  IST    1   16.25    0.01    3.06    7.10    0.00    0.05    0.00    0.00    0.00   73.52
12:45:50  IST    2   16.38    0.01    2.87    7.39    0.00    0.24    0.00    0.00    0.00   73.11
12:45:50  IST    3   16.60    0.01    2.93    7.07    0.00    0.06    0.00    0.00    0.00   73.34

To display average CPU usage for 3 times at 2-second intervals:

mpstat -P ALL 2 3

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

12:47:58  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:48:00  IST  all   23.30    0.00    4.99    4.74    0.00    0.00    0.00    0.00    0.00   66.97
12:48:00  IST    0   29.02    0.00    5.18    6.74    0.00    0.00    0.00    0.00    0.00   59.07
12:48:00  IST    1   26.53    0.00    6.12    4.59    0.00    0.51    0.00    0.00    0.00   62.24
12:48:00  IST    2   22.96    0.00    3.57    2.04    0.00    0.00    0.00    0.00    0.00   71.43
12:48:00  IST    3   14.14    0.00    5.05    5.56    0.00    0.00    0.00    0.00    0.00   75.25

12:48:00  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:48:02  IST  all   21.58    0.00    5.87    5.11    0.00    0.13    0.00    0.00    0.00   67.31
12:48:02  IST    0   25.13    0.00    9.23    9.23    0.00    0.51    0.00    0.00    0.00   55.90
12:48:02  IST    1   28.72    0.00    7.18    8.21    0.00    0.00    0.00    0.00    0.00   55.90
12:48:02  IST    2   18.88    0.00    3.06    1.53    0.00    0.00    0.00    0.00    0.00   76.53
12:48:02  IST    3   13.85    0.00    4.10    1.03    0.00    0.00    0.00    0.00    0.00   81.03

12:48:02  IST  CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
12:48:04  IST  all   24.78    0.00    5.11    5.87    0.00    0.13    0.00    0.00    0.00   64.11
12:48:04  IST    0   30.37    0.00    3.66   10.47    0.00    0.00    0.00    0.00    0.00   55.50
12:48:04  IST    1   27.78    0.00    6.06    9.09    0.00    0.00    0.00    0.00    0.00   57.07
12:48:04  IST    2   23.23    0.00    5.56    1.01    0.00    0.00    0.00    0.00    0.00   70.20
12:48:04  IST    3   17.86    0.00    5.10    3.57    0.00    0.51    0.00    0.00    0.00   72.96

Average:     CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest  %gnice   %idle
Average:     all   23.22    0.00    5.33    5.24    0.00    0.09    0.00    0.00    0.00   66.13
Average:       0   28.15    0.00    6.04    8.81    0.00    0.17    0.00    0.00    0.00   56.82
Average:       1   27.67    0.00    6.45    7.30    0.00    0.17    0.00    0.00    0.00   58.40
Average:       2   21.69    0.00    4.07    1.53    0.00    0.00    0.00    0.00    0.00   72.71
Average:       3   15.28    0.00    4.75    3.40    0.00    0.17    0.00    0.00    0.00   76.40

3. Check CPU Usage with Sar Command

The sar command is also used for collecting and reporting system activity information.

You can use the sar command with the -u option to track CPU performance. The following command will display CPU usage every 2 seconds.

sar -u 2

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

12:53:26  IST     CPU     %user     %nice   %system   %iowait    %steal     %idle
12:53:28  IST     all      5.30      0.00      2.02      2.52      0.00     90.16
12:53:30  IST     all      2.90      0.00      1.39      1.13      0.00     94.58
12:53:32  IST     all      3.57      0.00      2.04      0.76      0.00     93.63

The above command will run indefinitely. You can stop it using CTRL+C.

4. Check CPU Usage with Iostat Command

The iostat displays information on device utilization and the system’s average CPU utilization since the last reboot.

Run the iostat command without any option will display the information about CPU utilization, device utilization, and network file system utilization.

iostat

You should see the following output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

avg-cpu:  %user   %nice %system %iowait  %steal   %idle
          16.41    0.01    3.31    6.83    0.00   73.44

Device:            tps    kB_read/s    kB_wrtn/s    kB_read    kB_wrtn
loop0             0.01         0.04         0.00        373          0
loop1             0.01         0.04         0.00        387          0
loop2             2.59         2.62         0.00      23279          0
loop3             0.00         0.01         0.00        116          0
loop4             0.01         0.02         0.00        143          0
loop5            28.67        28.70         0.00     255344          0
loop6             0.01         0.04         0.00        385          0
loop7             0.00         0.01         0.00        121          0
sda              34.36       383.67       600.72    3413776    5345096

Use the -c option to break the CPU utilization into user processes, system processes, I/O wait, and idle time.

iostat -c

Sample output:

Linux 4.4.0-148-generic (newpc) 	Monday 23 August 2021 	_x86_64_	(4 CPU)

avg-cpu:  %user   %nice %system %iowait  %steal   %idle
          16.40    0.01    3.31    6.82    0.00   73.46

5. Check CPU Usage with vmstat Command

The vmstat command will display the information about system processes, memory, swap, I/O, and CPU performance. It will display the average details since the last reboot.

Run the vmstat command without any options as shown below:

vmstat

Sample output:

procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
 r  b   swpd   free   buff  cache   si   so    bi    bo   in   cs us sy id wa st
 3  1 1028672 130972 124344 1212276   19   71   101   150  341  818 17  3 73  7  0

The following command will update vmstat report every 2 seconds:

vmstat 2

Sample output:

procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
 r  b   swpd   free   buff  cache   si   so    bi    bo   in   cs us sy id wa st
 2  1 1032572 233396 125196 1129256   19   70   100   149  345  830 17  3 73  7  0
 2  0 1032572 232976 125212 1129596    0    0     0   112 3051 8697 40 10 42  8  0
 0  1 1032572 233040 125224 1130468    0    0     0  1510 3109 8631 43  9 41  8  0

Press CTRL+C to close the vmstat.

Conclusion

In the above guide, we explained different methods to check CPU usage in Linux. These tools can help you to track processor usage and the performance of your system. Give it a try today on your VPS from Altantic.Net.
