HAProxy, which stands for High Availability Proxy, is a free, open-source software solution that provides a reliable, high-performance load balancer and proxy server for TCP and HTTP-based applications. It is commonly used to improve the performance and reliability of web applications by distributing incoming traffic across multiple servers.

In this tutorial, we will show you how to install HAProxy on Ubuntu 22.04.

Step 1 – Setting Up Backend Servers

Before starting, you will need to set up Apache on both backend servers.

Log in to both your servers and install the Apache package using the following command.

apt-get install apache2 -y

Once the Apache package is installed, create an index.html file on both web servers.

echo "<h1>This is my first Apache Server</h1>" | tee /var/www/html/index.html
echo "<h1>This is my second Apache Server</h1>" | tee /var/www/html/index.html

Step 2 – Install HAProxy

By default, the HAProxy package is included in the Ubuntu default repository. You can install it using the following command.

apt-get install haproxy -y

Next, check the installed version to verify that HAProxy is installed correctly.

haproxy -v

You should see an output showing the HAProxy version.

HAProxy version 2.4.24-0ubuntu0.22.04.1 2023/10/31 - https://haproxy.org/

Next, start and enable the HAProxy service.

systemctl start haproxy
systemctl enable haproxy

Step 3 – Configure HAProxy

Edit the HAProxy configuration file to set up a basic configuration. The default configuration file is located at /etc/haproxy/haproxy.cfg.

nano /etc/haproxy/haproxy.cfg

Add the following lines:

frontend haproxy-main
    bind *:80
    option forwardfor
    default_backend apache_webservers

backend apache_webservers
    balance roundrobin
    server websvr1	192.168.1.10:80 check
    server websvr2	192.168.1.11:80 check
  • The frontend section defines where HAProxy listens for incoming traffic (port 80 in this case).
  • The backend section specifies the servers that the traffic should be distributed to.

Note: Replaced 192.168.1.10 and 192.168.1.11 with the IP address of your backend Apache web servers.

Step 4 – Setup HAProxy Authentication

To configure authentication for the HAProxy statistics page on port 8800 and set up a backend for your Apache web servers, you can use the following configuration. This example includes the listen section for the stats page with basic authentication and a backend section for your Apache servers.

Edit the haproxy.cfg file.

nano /etc/haproxy/haproxy.cfg

Add the following lines:

listen stats
    bind :8800
    stats enable
    stats uri /
    stats hide-version
    stats auth admin:password
    default_backend apache_webservers

Save and close the file, then restart the HAProxy service to apply the changes.

systemctl restart haproxy

Now, verify the status of HAProxy using the command given below:

systemctl status haproxy

Output:

● haproxy.service - HAProxy Load Balancer
     Loaded: loaded (/lib/systemd/system/haproxy.service; enabled; vendor preset: enabled)
     Active: active (running) since Sat 2024-05-25 12:32:27 IST; 9s ago
       Docs: man:haproxy(1)
             file:/usr/share/doc/haproxy/configuration.txt.gz
    Process: 44208 ExecStartPre=/usr/sbin/haproxy -Ws -f $CONFIG -c -q $EXTRAOPTS (code=exited, status=0/SUCCESS)
   Main PID: 44210 (haproxy)
      Tasks: 5 (limit: 9188)
     Memory: 70.0M
        CPU: 78ms
     CGroup: /system.slice/haproxy.service
             ├─44210 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock
             └─44212 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock

May 25 12:32:27 ubuntupc systemd[1]: Starting HAProxy Load Balancer...
May 25 12:32:27 ubuntupc haproxy[44210]: [NOTICE]   (44210) : New worker #1 (44212) forked
May 25 12:32:27 ubuntupc systemd[1]: Started HAProxy Load Balancer.

Step 5 – Test HAProxy

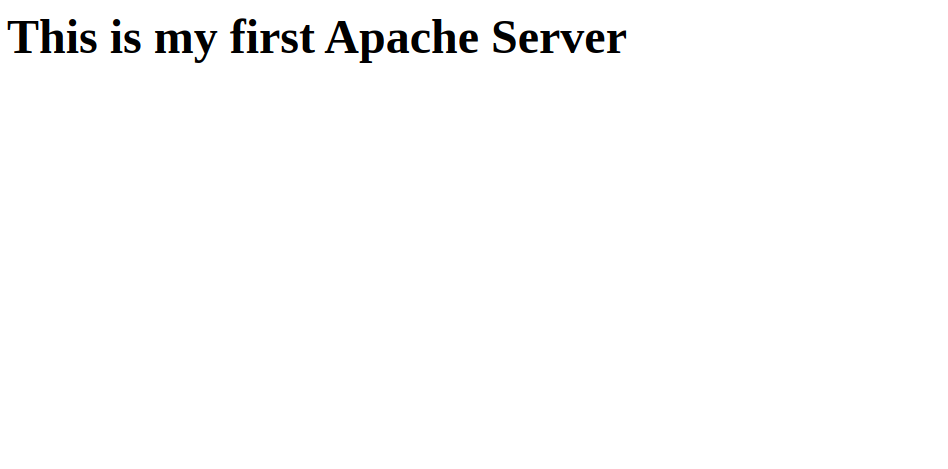

Open a web browser and navigate to your server’s IP address http://your-haproxy-ip. You should be able to see the Apache page if your backend servers are configured correctly.

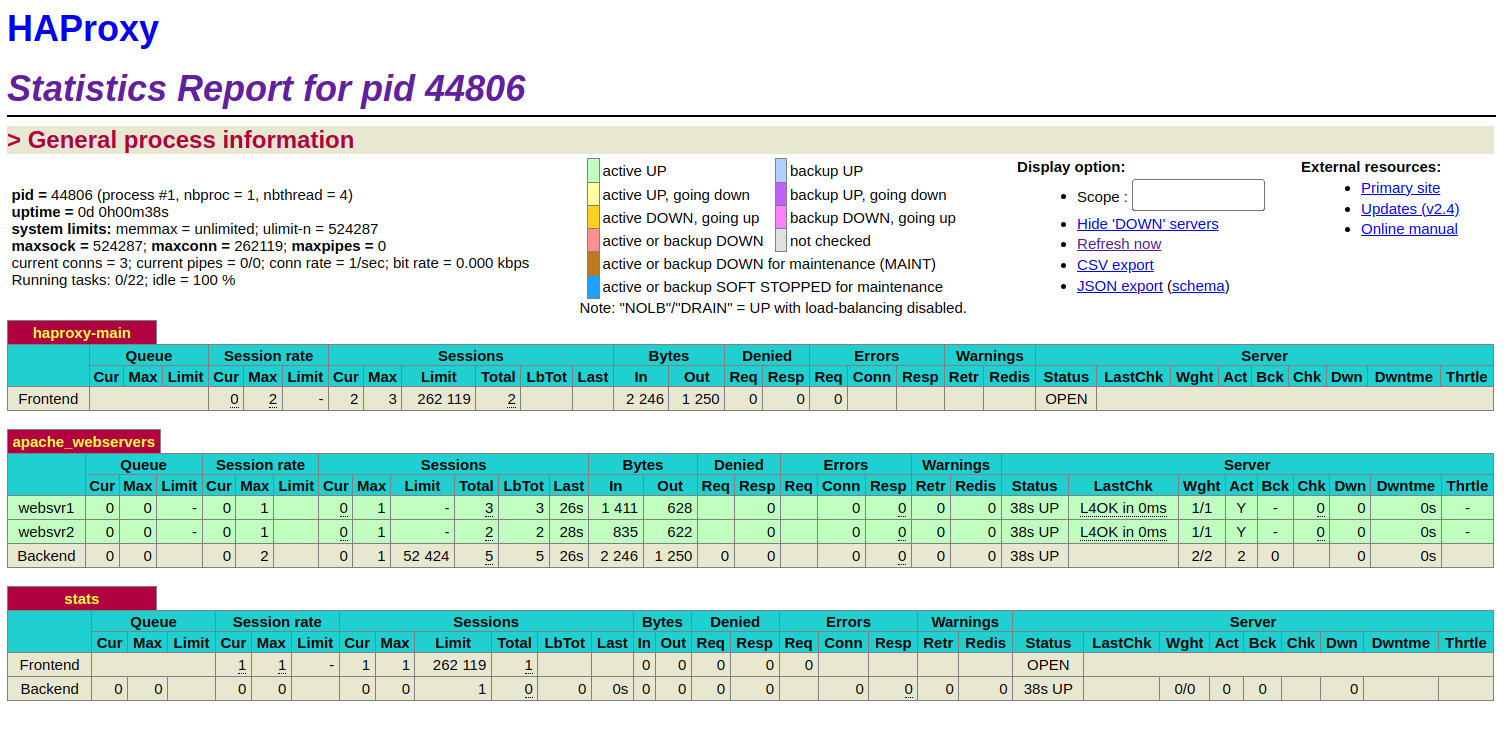

To view HAProxy statistics, navigate to http://your_haproxy_ip:8080/ and log in with the credentials defined in the configuration file (admin:password in this example).

Conclusion

HAProxy is a powerful and flexible tool for load balancing and improving the availability and performance of web applications and services. Its wide range of features and configurations makes it suitable for various use cases, from simple load balancing to complex routing and traffic management tasks. You can now deploy HAProxy on dedicated server hosting from Atlantic.Net! to load balance your web server.
