How to Install and use Bpytop Resource Monitoring Tool on Ubuntu 20.04

Hitesh Jethva
by Atlantic.Net (228 posts) under Tutorials, VPS Hosting
0 Comments

Bpytop is a free and open-source resource monitoring tool written in Python. It provides a command-line interface to monitor system resources including disk, network, process, and CPU in real-time. Bpytop can be installed on several operating systems including Linux, macOS, and FreeBSD.

It provides many useful features including a responsive UI, keyboard and mouse support, support for multiple filters, and much more.

In this post, we will show you how to install and use the Bpytop resource monitoring tool on Ubuntu 20.04.

Prerequisites

  • A fresh Ubuntu 20.04 server on the Atlantic.Net Cloud Platform
  • A valid domain name pointed with your server
  • A root password configured on your server

Step 1 – Create Atlantic.Net Cloud Server

First, log in to your Atlantic.Net Cloud Server. Create a new server, choosing Ubuntu 20.04 as the operating system with at least 2GB RAM. Connect to your Cloud Server via SSH and log in using the credentials highlighted at the top of the page.

Once you are logged in to your Ubuntu 20.04 server, run the following command to update your base system with the latest available packages.

apt-get update -y

Step 2 – Install Required dependencies

Before starting, you will need to install some dependencies in your system. You can install all of them with the following command:

apt-get install python3 python3-pip git make gcc build-essential -y

Once all the dependencies are installed, you can proceed to the next step.

Step 3 – Install Bpytop Using PIP

There are several ways to install Bpytop in your Ubuntu system. You can use PIP to install Bpytop to your system.

First, install the required dependencies using the following command:

pip3 install psutil

Next, install the Bpytop with the following command:

pip3 install bpytop

Step 4 – Compile Bpytop from Source

You can also install Bpytop by downloading it from the Git Hub, then compiling it to your system.

First, download the latest version of Bpytop with the following command:

git clone https://github.com/aristocratos/bpytop.git

Once the download is completed, change the directory to bpytop and compile it with the following command:

cd bpytop
make install

Step 5 – Install Bpytop Using SNAP

You can also use SNAP package manager to install Bpytop to your system. First, install the SNAP package manager with the following command:

apt-get install snapd -y

Once installed, run the following command to install Bpytop:

snap install bpytop

Step 6 – Install Bpytop Using Ubuntu Repository

You can also add the Bpytop repository to APT and install it from the Ubuntu repository.

First, add the Bpytop repository with the following command:

echo "deb http://packages.azlux.fr/debian/ buster main" | tee /etc/apt/sources.list.d/bpytop.list

Next, add the GPG key with the following command:

wget -qO - https://azlux.fr/repo.gpg.key | apt-key add -

Next, update the repository and install Bpytop with the following command:

apt-get update -y
apt-get install bpytop -y

Once the installation is complete, verify the installed version of Bpytop with the following command:

bpytop --version

Output:

bpytop version: 1.0.64
psutil version: 5.8.0

Step 7 – Working with Bpytop

You can launch the Bpytop command-line interface using the following command:

bpytop

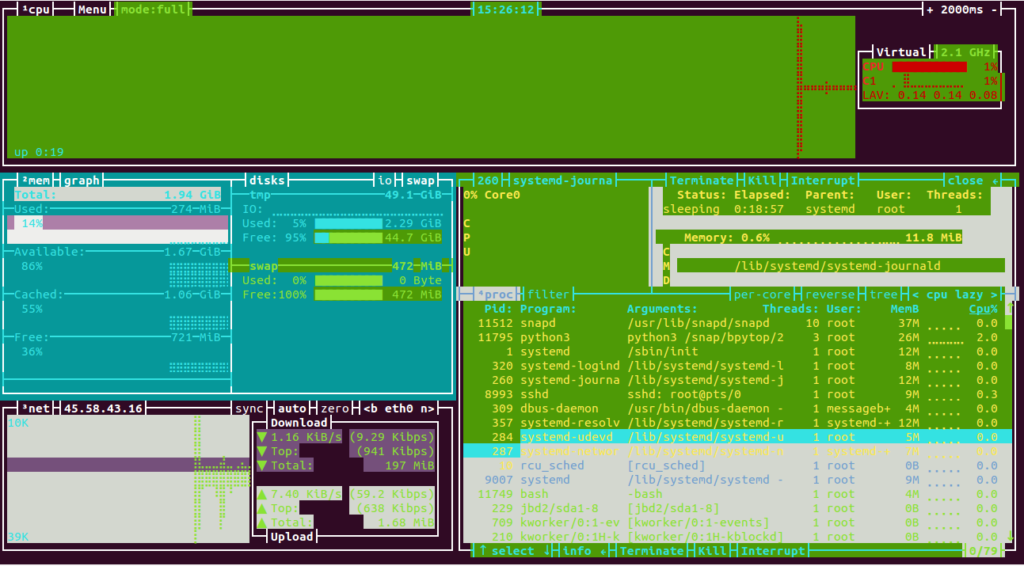

You should see the following screen:

Bpytop Interface

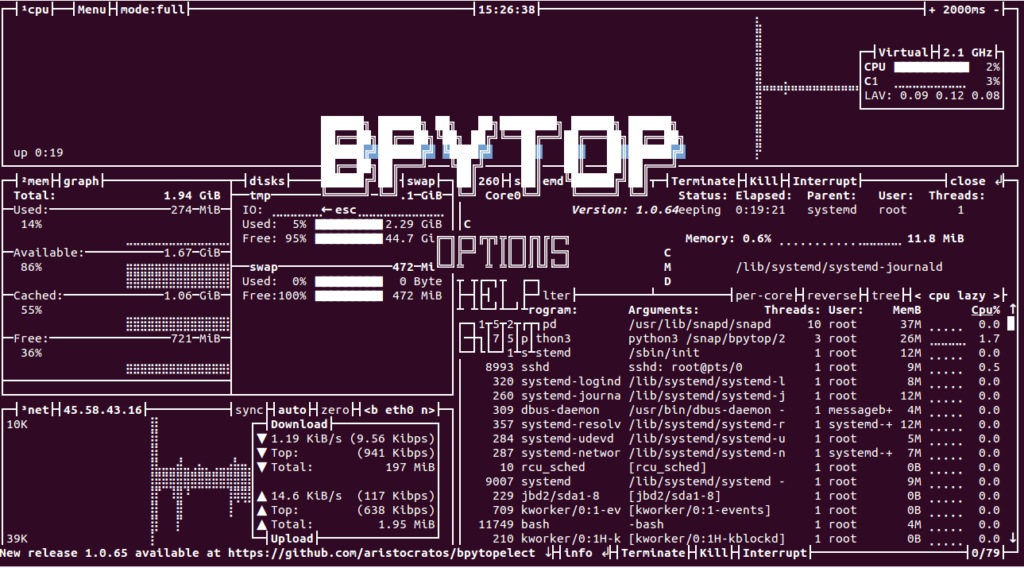

To get the list of all commands and keyboard shortcuts, press the ESC key. You should see the following screen:
Bpytop Options

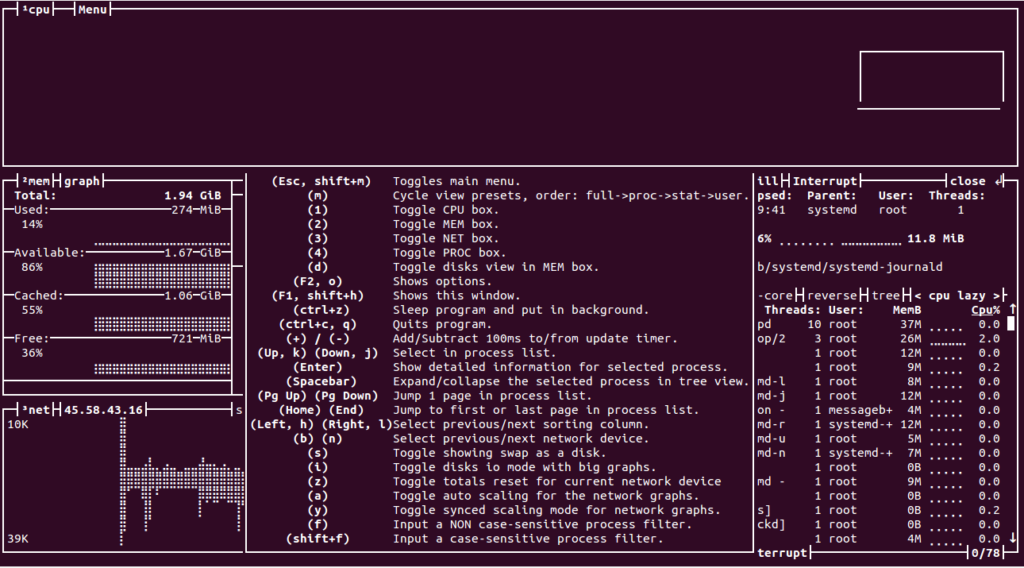

Now, scroll down and select the HELP option. You will get a list of keyboard shortcuts on the following screen:
Bpytop Help Page

If you want to exit from the Bpytop resource monitor, press q on the keyboard.

Conclusion

In the above guide, you learned how to install and use the Bpytop resource monitoring tool on Ubuntu. You can now play around with different options and check the results on your virtual private server from Atlantic.Net!
